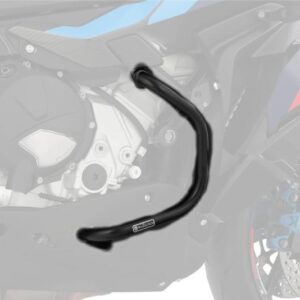

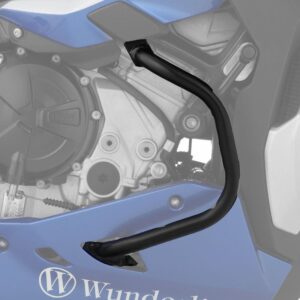

BMW S 1000 XR Protection – Engine Guard “PRO”

BMW S 1000 XR Protection – Engine Guard “PRO”: Our two-piece engine protection bar for the S 1000 XR offers maximum protection and maximum ground clearance with minimal weight. Its slim form integrates harmoniously into the design layout and the contours of the new, large XR. It shines with two more noteworthy technical solutions in the process: unlike the original protection bar, in our design, the faring doesn’t have to be notched on the upper attachment point on the frame side. The geometry of the protection is designed so that the faring doesn’t need to be cut out to screw it to the frame. Notching or cutting out the faring comes with the risk of damaging the faring so that it may end up requiring costly repainting. All this is eliminated with our protection bar! This lets you easily retrofit the engine protection bar, because is the original shape of the faring is retained. Special silent bearings for the protection bar of the S 1000 XR A second significant point is the special, vibration-decoupled attachment of each of the engine protection bars on the top of the frame bottom of the engine. On the frame side, the bar screws on as normal. On the engine side, we use specially developed silent bearings. The lower ends of the engine protection bar are both inserted axially into the silent bearing. The three-part silent bearing consists of the aluminium bearing screwed to the engine housing and two internal O-rings. An O-ring is positioned inside the bearing for decoupling of vibrations and as an impact absorber. The second is for radial guiding. The Shore hardness of the O-rings is determined such that despite this decoupling, the secure, form-fitted positioning of the engine protection bar is guaranteed. This decouples the bar – which is screwed to the frame – from the engine in terms of fluctuations and thus avoids the undesired transferral of vibrations and fluctuations. In the event of a fall or crash, the protection bar rests on the internal stopper of the silent bearing above the O-ring, which works as a fluctuation and stop damper, and absorbs the resulting axial forces. The second O-ring absorbs the radial forces and absorbs additional energy. Function The two-piece engine protection bar offers maximum protection and maximum ground clearance with minimal weight Slim, integrated form, functional design Easy mounting without the need to enlarge or modify existing openings in the fairing Simple retro-conversion, since the faring doesn’t need to be modified Special silent bearing for vibration-decoupled, form-fitted attachment Thus avoids the undesired transferral of vibrations and coupled fluctuations The rubber ring elements used in the silent bearing absorb additional energy in the event of a fall or crash Simple assembly, incl. the necessary assembly materials Technical information Material: Engine protection bar: Precision tubing, carefully formed on CNC pipe bending machines and clean welded, black powder-coated Pipe diameter: 22.5/12.5 mm Silent bearing, aluminium, high-quality processed, O-rings as vibration dampers Features Wunderlich premium product. Small series. Handcrafted. Wunderlich design. Integrated and functional. MANUAL

Key Features

• High-quality construction
• Durable
• Easy installation

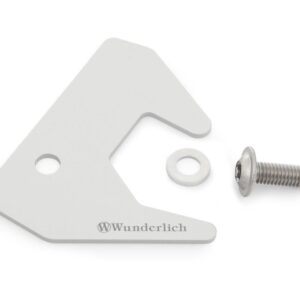

BMW S Series Protection – Front ABS Guard

The ABS sensor for the front wheel sits very exposed and unprotected between the radial brake caliper and axle of the front wheel. It is a sensitive component that together with the ABS rim and ABS controller prevents the front wheel brake from being blocked and the rider from losing control of the motorcycle. It is an important safety component that must always be working and which must always be protected from mechanical damage e.g. caused by stones, branches or other foreign bodies. Our ABS sensor protection that integrates snugly into the recess that houses the radial brake caliper, that reliably covers the ABS sensor and protects it from damage. Function Reliable, effective protection of the safety-related ABS sensor Fitted, integrated guard Secure hold thanks to the form fit and screw connection Easy mounting Complete with installation parts Technical information Material: Aluminium, high-quality and precision crafted, silver anodised Manual

Key Features

• High-quality construction
• Durable
• Easy installation

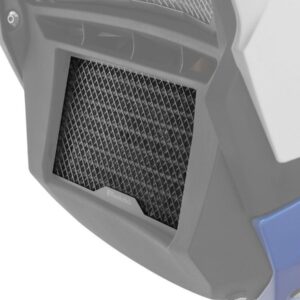

BMW S Series Protection – Oil Cooler Guard

To ensure an oil cooler can deliver optimal cooling, it needs optimal air flowing through from the air flow as you ride. This is why it’s located on the bottom end of the fairing, beneath the radiator. This has a serious disadvantage though: the oil cooler sits directly behind the front wheel and therefore right in the path of whirled up dirt, stones and foreign bodies that hit the delicate fins of the oil cooler. Dirt and insects clog up the cooler and reduce the cooling capacity, such as fins bent by „stone impacts“. In the worse case, foreign bodies with sharp edges can cause damage that lead to leaks. With a damaged cooler, it is no longer possible to continue driving and dirt reduces the cooling capacity. This is why we recommend our oil protection grille, which consists of a fine meshed, tough and resistant stainless steel grille, to avoid damage and capture heavy dirt before it affects the oil cooler. It reliably protects the oil cooler without impacting the air flow. Refined, reliable protection of the vulnerable radiator network for the oil cooler Prevents damage and heavy dirt from foreign bodies thrown up by the front wheel Prevents the loss of cooling in the oil cooler without reducing the air flow Highly solid, resistant welded stainless steel grille with sturdy aluminium frame bonding Robust connection technology between grille and frame With mounting kit Grille material: Stainless steel grille, carefully welded and crafted to be highly mechanically resistant Frame material: Aluminium, high-quality, 2 mm profile thickness, black anodised Component dimensions Width 245mm Height 120mm Features Wunderlich premium product. Small series. Hand crafted. Wunderlich design. Integrated and functional. Tip:If you want to carefully clean the cooler by hand, this must be done with extreme care to ensure that the radiator network doesn’t get damaged. Insects and other grime which has accumulated can be easily removed with a damp cloth. Place the damp cloth on the grille until the dirt is loosened by the moisture and can be easily wiped away with no residue. Manual

Key Features

• High-quality construction
• Durable
• Easy installation

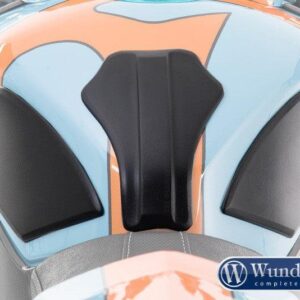

BMW S1000 Protection – Tank Pads

Tank Pad Protection : Exactly design-matched tank pads set, that effectively protects all contact points from scratches, damage, and wear. The improved knee grip provides a grippier driving feel that significantly enhances driving pleasure. With an effective central pad that protects against zip scratches. The facts: Simple assembly Perfect fit and form-fitting Reliable protection and secure hold Supplied complete with all attachment hardware Instruction Manual

Key Features

• High-quality construction
• Durable
• Easy installation

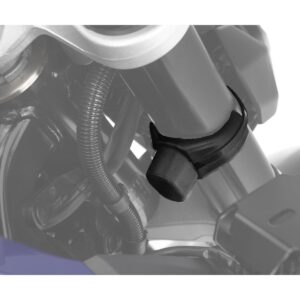

BMW S1000 Series – Steering Stopper

Steering Stop : Unfortunately, the original steering stops are simply not strong enough. They can be damaged by harmless falls or a strong knock. If this happens, the top yoke (upper clamp) can be damaged, and the fork tubes and Telelever are vulnerable as well. Additionally, on the 1000 models the brake lines could be squashed causing brake failure. All this can lead to expensive repairs and a great deal of aggravation. All the listed original parts are not available usually at bargain discount prices, so the investment in damage prevention is always worthwhile. We have opted for a new approach with the S 1000 Series BMW, here‘s how it works: the protector brackets bolt onto the lower fork bridge pinch bolts, the top bumpers contact the Telelever just before the original steering stop would make contact.This softens the blow, and, as the rubber bumper compresses, it progressively becomes a solid stop for the forks. Turning the handlebar fully is significantly more pleasant as the hard original restriction is no longer present. Sold as a complete set of left and right hand side complete with all fittings.

Key Features

• High-quality construction
• Durable
• Easy installation

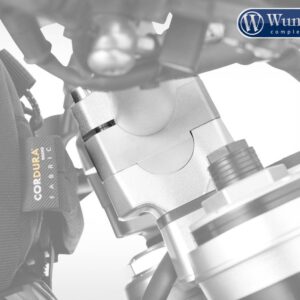

BMW S1000R Ergonomics – Risers +20mm

The factory spec S 1000 R is delivered with a sporty, forward leaning seating position. With this bar riser set, the handlebars are raised 25 mm and because of the angle of the triple clamp, the bars are brought slightly closer to the rider. The finish of these high quality risers closely matches the original bar clamps and makes this modification hardly noticeable to the eye. The kit comes complete with top grade hardware and the installation is simple. The facts: 20 mm height increase. Improved handling. More relaxed upright sitting position. Individually machined of solid Dural aluminum (not cast). Anodized silver. Easy to install. No changes to hydraulic lines or cables needed. Complete with set of bolts. Made in Germany. TÃœV approved Fits:- 2017- Brand : Wunderlich Germany
