Wunderlich

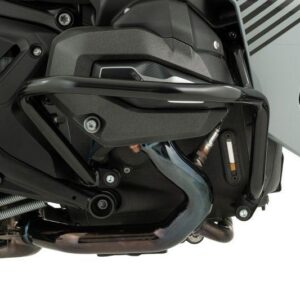

BMW R 1300 R Protection – Engine Protection Bar

WUNDERLICH ENGINE PROTECTION BAR GUARD PERFECT, EFFECTIVE PROTECTION FOR THE ENGINE OF THE BMW R 1300 R AND RS Function and product features The Wunderlich GUARD engine protection bar is designed for maximum protection combined with maximum lean angle and ground clearance The proven construction offers high rigidity and effective protection Reduces the risk of costly damage to the motorcycle itself Even distribution of forces across three mounting points per vehicle side The course of the bars is precisely matched to the contour of the Boxer engine Maintenance-friendly: oil changes with filter cartridge possible without removing the protection bar Plug & Play fit for easy installation Scope of delivery Two protection bar halves, one for the right and one for the left side, including all necessary mounting material and detailed installation instructions Compatibility note The Wunderlich GUARD engine protection bar is compatible with the original BMW cylinder head cover protection the original Option 719 milled parts ignition coil cover Note and our recommendation Motorcycles are often designed so that – when an engine protection bar is installed – the footrest and protection bar touch down almost simultaneously at a lean angle that remains within the safe limits of tyre adhesion. It is important to be aware that various factors, such as the motorcycle’s load or when riding through a dip or pothole, can restrict the possible lean angle. Material High-quality precision steel tube with high tensile strength and elongation at break, carefully handcrafted, precisely shaped radii and clean weld seams, accurate connections, black powder-coated Dimensions Tubing diameter: 25 mm Your Wunderlich benefits Wunderlich premium product. Small batches. Handcrafted. Wunderlich design. Integrated and functional. THIS GUARD ENGINE PROTECTION BAR OFFERS THE PERFECT COMPROMISE BETWEEN MAXIMUM PROTECTION AND LOW WEIGHT During the design process of the GUARD engine protection bar, maximum protective effect and optimum lean angle clearance were the main focus. It reliably protects the cylinders and valve covers. The all-round protection concept increases passive safety and enhances riding enjoyment. In the event of a fall or tip-over, the forces are optimally distributed through the bar structure to the solid mounting points, effectively avoiding stress peaks and reducing material strain. The protection bar structure is made of 25 mm precision steel tubing. The segments are CNC-bent and then neatly welded. Visually, the bar integrates harmoniously into the motorcycle’s design and complements its distinctive appearance. It is also compatible with the original BMW cylinder head protection and the Option 719 milled parts ignition coil cover. Our GUARD protection bar is maintenance-friendly: oil drain plug and filter cartridge remain fully accessible without removing the bar. For our protection bars, protective function and product design go hand in hand. The engine protection bar refines your BMW in a premium way. The black version is glass bead-blasted and finally powder-coated in black.

Key Features

• High-quality construction
• Durable
• Easy installation

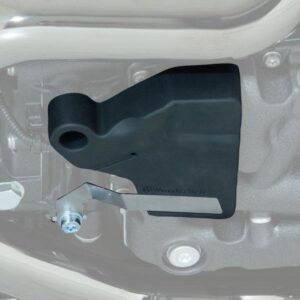

BMW R 1300 R Protection – Oil Level Sensor Guard

THIS WUNDERLICH PROTECTOR FOR THE OIL LEVEL SENSOR ON BMW R 1300 R MODELS REDUCES THE RISK OF DAMAGE TO THE SENSOR AND MINIMISES POTENTIAL HARM TO THE ENGINE AND ENVIRONMENT. Function and product features High-performance oil level sensor guard – can be mounted independently or as a valuable addition to the STREET engine guard (#14220-002) The downward-protruding oil level sensor of BMW R 1300 R models is at risk of breaking when bottoming out over curbs or ramps – especially when riding with a passenger or fully loaded The sensor, made of plastic, is not designed to withstand such impacts Damage may cause the oil level indicator to fail, potentially resulting in error messages or oil leaks, with harmful consequences for the engine and environment The sensitive sensor must therefore be protected against these external forces The protector shields the sensor by creating a protective space Advantages: Protects the sensor from damage Reduces the risk of being stranded after a sensor failure Prevents environmental contamination Compatibility: Wunderlich STREET engine guard Mounting: Uses existing mounting points and form fit Direct bolting and spring clip fastening Sensor cable channel with outlet for draining splash or surge water during rainy rides The core made of robust stainless steel is covered with a vibration-dampening rubber layer The rubber is optimally selected for its Shore hardness for effective vibration damping Simple installation using the supplied fastening elements With Wunderlich brand logo Note and recommendation For maximum protection, we recommend installing the sensor guard together with the STREET engine guard (#14220-002). Please order separately. Technical data Material Composite material made from metal and EPDM damping rubber, carefully vulcanised to the stainless steel plate – heat resistant Your Wunderlich advantages Wunderlich product. Functionally integrated. Sustainable product Utility model protected Invisible but indispensable THE SENSOR GUARD ISOLATES AND ABSORBS EXTERNAL FORCES The oil level sensor on BMW R models protrudes downward from the oil sump and is at risk of breaking when bottoming out on curbs or ramps, particularly with a passenger or full load. This plastic sensor cannot withstand such forces and may be damaged, including its wiring. Damage may cause error messages or oil leakage, potentially harming the engine and environment. Our sensor guard creates a protective enclosure that shields the sensor from these external forces. The advantages: damage prevention and reduced risk of breakdowns due to sensor failure. The stainless steel core is covered with vibration-absorbing rubber, vulcanised under heat and pressure for a durable bond. A channel guides the sensor cable and allows water drainage. The sensor protector is a useful complement to the STREET engine guard (#14220-002) but can also be installed independently. Our sensor protector for BMW R 1300 R models thus reduces the risk of sensor damage and the chance of serious harm to engine and environment due to leaking oil. Protected by utility model.

Key Features

• High-quality construction
• Durable
• Easy installation

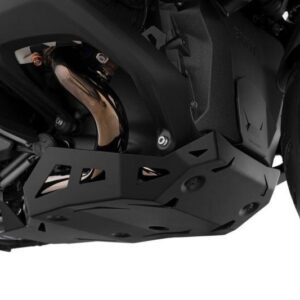

BMW R 1300 R Protection – Skid Plate (STREET)

WUNDERLICH ENGINE GUARD STREET – COMPREHENSIVE PROTECTION FOR THE ENGINE HOUSING, OIL PAN, AND HEADERS OF THE BMW R 1300 RT Function and Product Features High-quality, silver anodised STREET engine guard in Wunderlich Tool Design Good to know: This engine guard follows the same demanding product standards and design principles as the ULTIMATE engine guard for the R 1300 GS and GS Adventure Optimal structural and functional integration Comprehensive protection for engine casing, oil pan and headers Close-fitting design with minimal impact area that highlights the edge styling Maximum ground and cornering clearance The guard’s shape reduces the risk of bottoming out – especially when riding fully loaded Angled deflector plates significantly reduce damage from stone impact and debris Minimises thermal stress by deflecting splashing water stirred up by the front wheel Water and spray drain freely through integrated openings External forces are absorbed by vibration-damping mounts Unrestricted access for maintenance (e.g. oil drain plug) High component rigidity and mechanical strength with low weight Corrosion-resistant Simple, secure installation using original mounting points Includes mounting kit With Wunderlich brand logo Note and Recommendation We recommend adding our oil level sensor protector (#14221-002) for extra protection of the oil level sensor. Technical Data Material High-strength aluminium, precisely manufactured, silver anodised, with integrated vibration-damping mounts, countersunk screws, and high-grade powder coating Dimensions Width: 410 mm Length: 530 mm Material thickness: 3 mm PROTECTION PERFECTED – THE INTEGRAL FUNCTIONAL DESIGN OF THE WUNDERLICH STREET ENGINE GUARD IS BASED ON THE HIGH STANDARDS OF OUR ULTIMATE ENGINE GUARD FOR THE GS Engine guards are typically associated with adventure bikes – and rightly so. But effective underbody protection also makes sense on touring motorcycles like the R 1300 RT. Our STREET engine guard in Tool Design is built on the same stringent design principles as the ULTIMATE engine guard for the R 1300 GS and GS Adventure. Its tight, contour-hugging shape provides full protection for the engine casing, oil pan, and headers, with minimal impact on ground or cornering clearance. The geometry helps avoid bottoming out – for example, when crossing curbs with a fully loaded bike. Integrated openings allow water to drain easily. The angled deflector plates redirect stones and debris thrown up by the front wheel, reducing the risk of damage to headers and engine casing. A key benefit: it also deflects splash water when riding through ruts or puddles, significantly reducing thermal stress on a hot engine and its seals. Its complex shape and geometry were engineered for strength and weight optimisation, delivering a rigid, lightweight guard that fits so closely it exemplifies the “form follows function” design philosophy. All fasteners are recessed, eliminating potential impact surfaces and enhancing the sharp-edged design.

Key Features

• High-quality construction
• Durable
• Easy installation

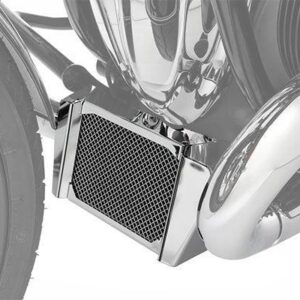

BMW R 18 Protection – Oil Cooler Guard

The standard plastic lining of the oil cooler of the BMW R18 appears to many to look out of place in an otherwise extremely coherent concept. We have developed an elegant protection made entirely of high-quality chrome-plated stainless steel that not only enhances the appearance of the big boxer, but also takes on the function protecting the oil cooler. Our oil cooler protection is convincing in two ways: With our proven radiator protection concept and a coherent, integrated design that does justice to the Big Boxer.The oil cooler is located directly behind the front wheel and therefore vulnerable for thrown up dirt, stones and other foreign bodies that can hit the filigree fins of the oil cooler. Dirt and insects clog the cooler and reduce the cooling capacity just as much as fins bent by “flying rocks”. In the worst case, sharp-edged foreign bodies can cause damage that leads to leaks. With a damaged radiator, further riding is no longer possible. We therefore recommend our oil cooler guard with an integrated protective function. We manufacture it entirely from stainless steel. In addition, we weld the nodes of the resistant, fine-mesh protective grille to prevent damage to the oil cooler and to intercept coarse dirt before it affects the oil cooler. The product reliably protects the oil cooler without reducing the air flow. As with the original, it is installed in the same way as the original using the 4 fastening points on the side. Function Doubly convincing: Perfect protection for the oil cooler and at the same time a noble, optical upgrade with a coherent, integrated design that does justice to the Big Boxer Stylish, reliable protection for the sensitive fins of the oil cooler network Prevents damage and coarse soiling caused by foreign bodies thrown from the front wheel Reduces the risk of loss of cooling capacity due to deformed or dirty fins Convincing protection – without reducing the air flow The integrated cover and welded protective grille are made entirely of high-grade stainless steel. Comes with everything you need to install Technical data Material: Casing and grille made of robust, rustproof stainless steel, 2 mm material thickness, carefully processed, high-quality chrome plating Dimensions Width 284 mm Height 156 mm Your Wunderlich Advantages Wunderlich product. Produced in small batches. Handcrafted. Wunderlich design. Functional and integrated.

Key Features

• High-quality construction
• Durable
• Easy installation
