Wunderlich

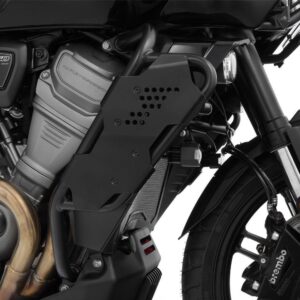

HD PAN America Protection – Fairing Guard

These robustly manufactured filler plates close the gap between the original engine guards and provide extra stability and safety. The uncomplicated installation of the protective system made of high-quality aluminum is carried out directly and easily accessible on the engine guard. Four millimeters of component thickness, the form-fitting, immovable fastening, with two clamps, each of which is bolted twice. These are convincing features for a robust and resistant construction that is like a protective shield. The dynamic shape integrates conclusively into the concept. The facts: Comprehensive additional protection Closes the side openings of the right and left pillion rest carriers Solidly constructed, robust and durable Form-fit assembly for increased safety and structural stability Two double-bolted clamps, countersunk hexagon socket screws per side Made of sturdy aluminum sheet Supplied as a set for right and left side Incl. fixing material Technical data Material: aluminum, precisely processed and black anodized Dimensions: Width: 174 mm, Height: 310 mm, Component thickness: 4 mm

Key Features

• High-quality construction
• Durable
• Easy installation

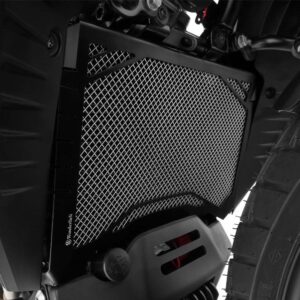

HD PAN America Protection – Radiator Guard

The radiator is optimally positioned in the airstream generated during travel for optimum airflow to cool the engine. The exposed installation position also means that the delicate fins of the radiation network are also unprotected against stone strikes, foreign bodies and insects, however. Insects clog up the cooler and reduce the cooling capacity, such as fins bent by „stone impacts“. In the worst case, this can lead to leaks. With a damaged cooler, it is no longer possible to continue driving and dirt reduces the cooling capacity. Our radiator protection is designed to provide an optimal air flow and optimal cooling capacity. The front silhouette of the cooler is covered in a way that reliably avoids foreign bodies and insects directly striking the vulnerable radiator network. It reliably protects the cooler without impacting the air flow. Our radiator protection is also a visual highlight: The functional design is integrated into the appearance and visibly enhances it. The facts: Function Refined, reliable protection of the vulnerable radiator network for the radiator Prevents damage and heavy dirt or foreign bodies being thrown up Prevents the loss of cooling in the radiator without reducing the air flow Highly solid, resistant welded stainless steel grille with sturdy aluminum frame bonding Vibration-isolated mounting Robust connection technology between grille and frame With mounting kit Technical information: Grille material: Stainless steel grille, carefully welded and crafted to be highly resistant Material: Aluminum, high-quality, 2 mm profile thickness, black anodised Component dimensions Width: 415 mm Height: 292 mm Features Wunderlich premium product. Small series. Hand crafted. Wunderlich design. Integrated and functional. Made in Europe

Key Features

• High-quality construction
• Durable
• Easy installation

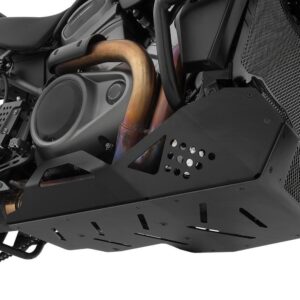

HD PAN America Protection – SkidPlate

The functional design and constructive integration of our EXTREME three-piece engine protection, made of aluminium, provides the comprehensive protection for the engine housing, the oil tank, parts of the manifolds, the catalytic converter, the sensitive coolant expansion tank and the exposed battery. The inserted stainless steel grille also protects the charging current regulator and ensures its cooling at the same time. The recessed screw connection underlines the adventure style in the best possible way. In the process, the black powder-coated engine protection hugs the engine so tightly while ensuring the greatest possible ground and lean clearance. The shape of this protection avoids unpleasant levering or jamming of the vehicle over terrain, no matter whether from branches, scree or rocks. Openings ensure that water picked up during river crossings can flow out freely again. The aluminium motor protection is corrosion-resistant and external forces and torques are distributed to the shock-absorbing mountings to reduce peak loads. Vibrations are effectively absorbed by the silent blocks. Typically Wunderlich, the team have made sure that you have good, unrestricted access during maintenance works: for example, an opening has been included for unhindered drainage of the engine oil. We were able to optimise the component weight and at the same time realise high component stiffness and mechanical stability. The result is a resistant, weight- and shape-optimised engine protection based on the design principle of form follows function, which fits perfectly into the design of the Pan America. Facts: Function Maximum protection for engine housing, oil tank, parts of the manifolds, the catalytic converter, the sensitive coolant expansion tank, the exposed battery as well as the charging current regulator Optimal constructive integration and functional design in Adventure Style Close-fitting shape with low contact surface that avoids unpleasant levering or jamming over terrain Greatest possible ride height and lean angle Water picked up during river crossings can flow out freely again Externally generated forces are intercepted by impact-decoupling attachment elements and vibrations are absorbed Corrosion resistant Good, unrestricted access during maintenance works High component rigidity and mechanical stability with significantly reduced weight Simple, secure attachment Includes attachment material Technical Information Material High-strength aluminium, precision-manufactured with integrated shock-absorbing fastening elements, high-quality, recessed screw connection, powder-coated Dimensions Width 318 mm Length approx. 620 mm Component thickness 3 mm Colour Black Features Wunderlich product. Small series. Hand crafted. Wunderlich design. Functional and integrated. Made in Germany

Key Features

• High-quality construction
• Durable
• Easy installation
